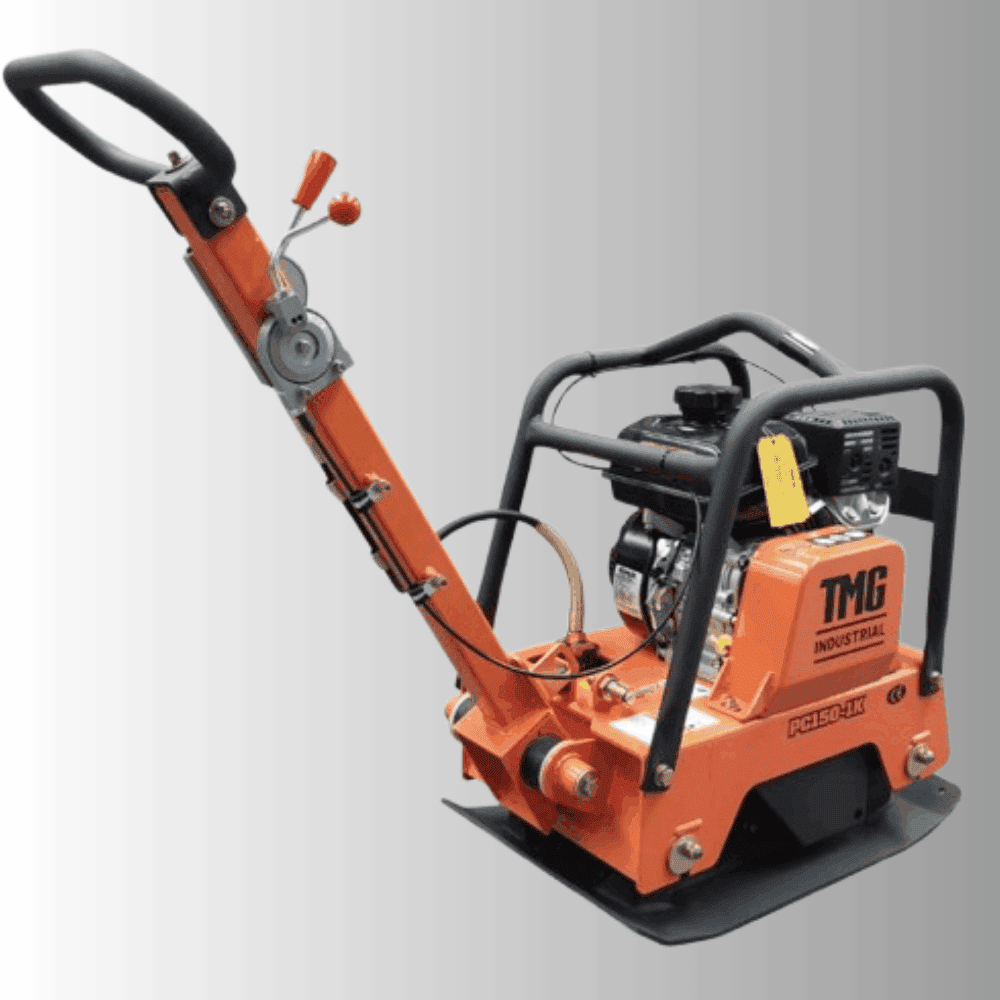

5600lb Plate Packer

• Compaction force: 5600 lbs
• Work capacity: 3900 sq-ft/hour
• Frequency: 4300 VPM
• Compaction depth: 12”
• Travel speed: 65 ft/min
• Max. inclination angle: 15º
• Compaction plate size: 25” x 16”
• Operating weight: 270 lbs

Engine Specifications:

• Model: CH255 Kohler Command Pro series
• Engine Type: 4-Stroke OHV Single Cylinder
• Horsepower: 5.5 HP
• Displacement: 177 cc (10.8 in³)
• Bore: 68 mm (2.7 in)
• Stroke: 49 mm (1.9 in)
• Maximum Torque: 8.3 Nm (11.2 lb-ft) @ 2800 RPM
• Compression Ratio: 8.5:1
• Dry Weight: 15 kg (33.2 lbs)
• Oil Capacity: 0.6 L (0.63 US qt)
• Fuel Type: Gasoline
• Number of Cylinders: 1
• Shaft Orientation: Horizontal
• Shaft Diameter: 3/4 in
• Shaft Length: 2-7/16 in
• Start Type: Recoil
• Ignition Type: Electronic
• Air Cleaner Type: Quad Clean 4 Stage Heavy Duty Cyclonic
• Low Oil Shut Down: Yes
• Muffler: Yes
• Fuel tank: 3.0 L
• Emissions compliance: EPA Phase III and CARB III
